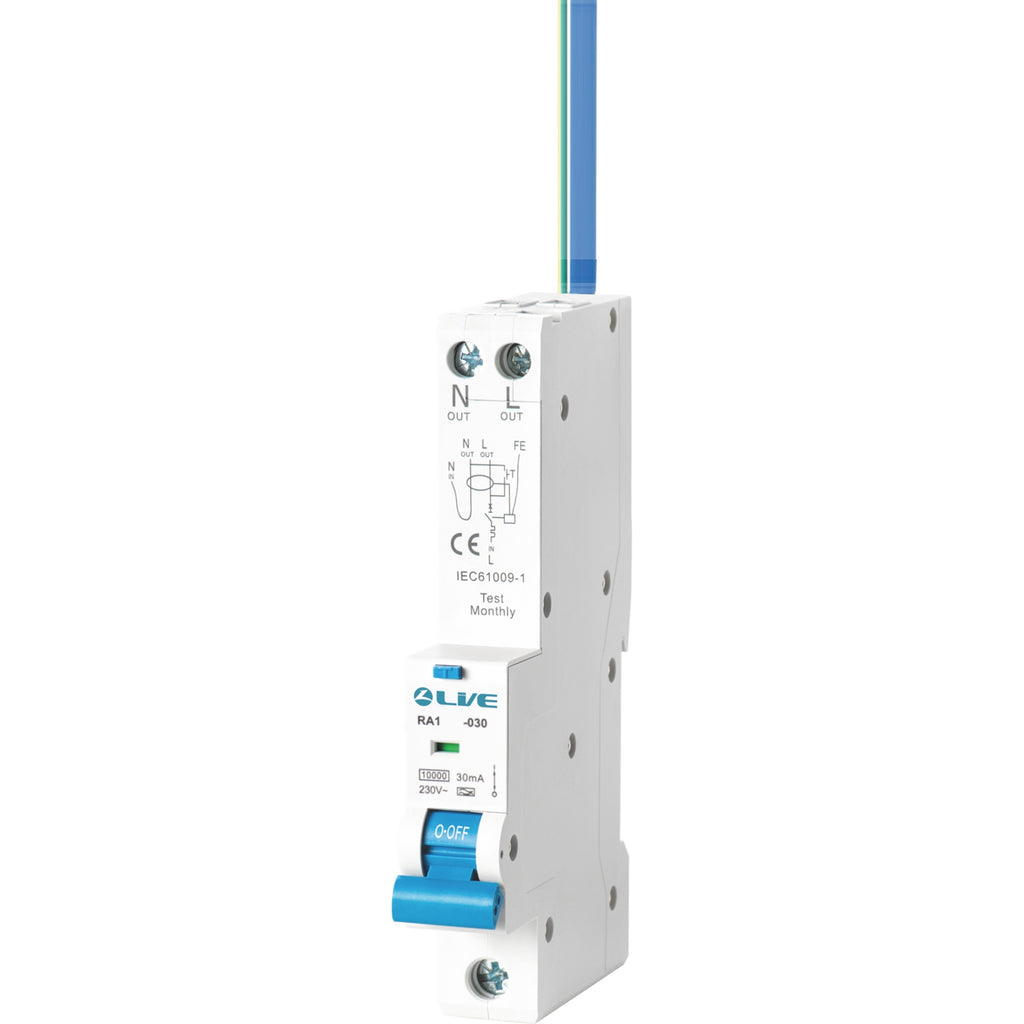

Live Electrical RA116B-030 16A RCBO B Curve, A Rated 10kA 30mA 16 Amp

The RA116B-030 is a compact 16A single-module RCBO from LIVE Electrical, designed to provide combined protection against overload, short circuit, and earth leakage faults in one device. It features Type A residual current detection, meaning it responds to both AC and pulsating DC leakage currents, making it suitable for modern electrical installations with electronic loads such as LED lighting, appliances, and inverter-driven equipment. Its high immunity design helps reduce nuisance tripping caused by harmonics and transient switching surges.

Key Features

• 16A rated current for lighting and light power circuits
• Type A RCBO (AC + pulsating DC leakage detection)
• 30mA sensitivity for additional personal protection
• B Curve tripping characteristic for standard domestic/commercial loads
• 10kA breaking capacity for higher fault level installations
• 1P+N (switched neutral) for full circuit isolation
• Compact single-module DIN rail design (18mm width)
• High immunity design to reduce nuisance tripping
• Complies with BS EN 61009-1
