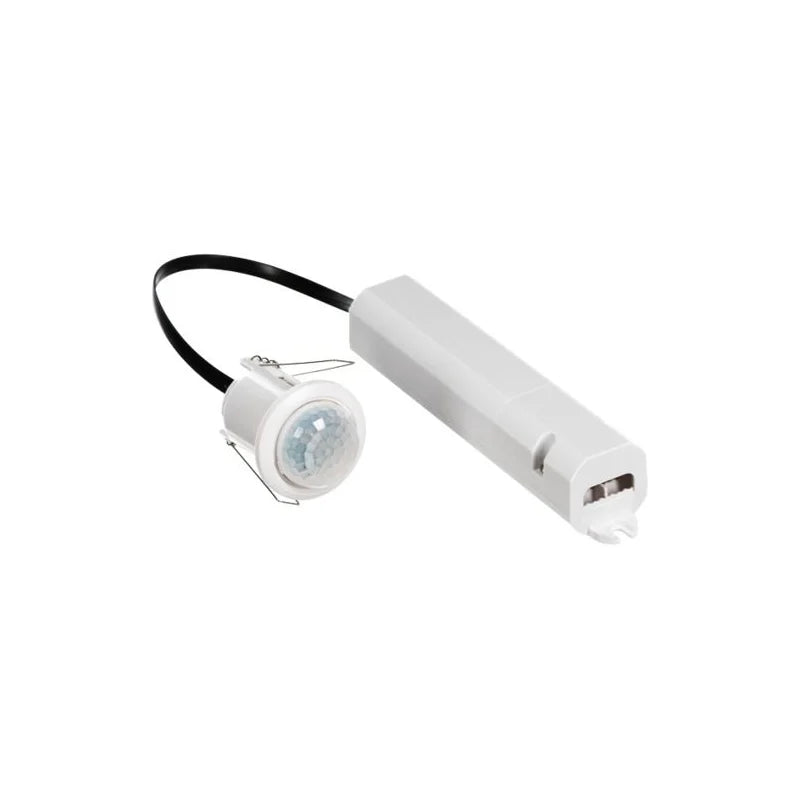

Timeguard Mini PIR Sensor 360 Degrees

The Timeguard PDFMMINIL is a compact, recessed 360° PIR presence detector designed for corridors, offices, classrooms, meeting rooms and other multi-zone lighting applications. Featuring a discreet 47mm diameter sensor head, it provides reliable occupancy detection with adjustable time and lux settings for efficient automatic lighting control. The master sensor can be linked with up to five PDFMMINILS slave sensors, making it ideal for extending coverage across larger areas while maintaining a clean, unobtrusive appearance.

Key Features

• 360° ceiling-mounted PIR presence detector
• Compact flush-mounted design with only a 47mm visible diameter
• Motion detection range up to 8m diameter
• Presence detection range up to 3m diameter
• Adjustable ON time from 30 seconds to 30 minutes
• Adjustable lux level from 10 to 2000 lux
• Link up to 5 PDFMMINILS slave sensors
• Twist & Lock design for quick installation and maintenance
• RJ11 plug-and-play connections for fast wiring
• Manual override function for continuous operation
• IP40 rated for indoor applications
• Suitable for LED, fluorescent and halogen lighting loads
• 40mm ceiling cut-out required
