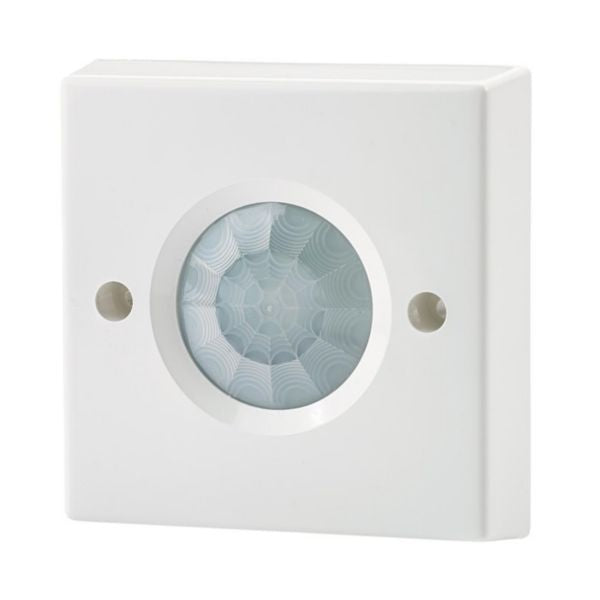

CP Electronics Single Back Box Ceiling Mounted PIR Presence Detector

The CP Electronics SPIR-F/C is a ceiling-mounted PIR occupancy sensor designed to provide automatic control of lighting, heating, and ventilation systems. Using passive infrared (PIR) technology, the sensor detects occupancy and automatically switches connected loads on when movement is detected and off when the area becomes vacant, helping to reduce energy consumption and operating costs. Its compact design allows for simple installation onto a standard single-gang back box, making it ideal for both new installations and retrofit projects.

Key Features

• PIR occupancy detection with automatic ON/OFF control
• Integrated lux level sensing for enhanced energy savings
• Adjustable time delay settings from 10 seconds to 30 minutes
• Compatible with all lamp types, including LED lighting
• Suitable for lighting, heating, and ventilation control
• Surface or flush mounting onto a standard single-gang back box
• Integral power supply
• Detection range up to 7 metres at a typical mounting height of 2.8–4 metres
